DESCRIPTION:

ADF Technical Parameter

-Viewing Area:114*70MM(4.49"X2.75")/112X43mm(4.41"X1.69")

-CE Optical Class: 1/1/1/1

-Sensors: 5

Light Shade: 4

Shade:variable shade5-8/9-13, side shade 11

Shade contro:External, digital control

Switch  Time(23℃):0.04ms

Sensitivity contro: Adjustable (Level 1-5 for low -high)

Delay contro: Adjustable (Level 1-5 for 0.1-0.9s)

Grinding Function: Yes

Low battery warning indicator: Yes

ADF self check:Yes

Power Supply: solar cell, 2*CR2450 Li-battery Change Required

Operating Temperature:-15℃ to +65℃ (5° F-149°)

Storage  Temperature:-25℃ to +85℃ (-13° F-185°)

Operating Temp:-10℃~+60℃

Minimum TIG current:≥5A

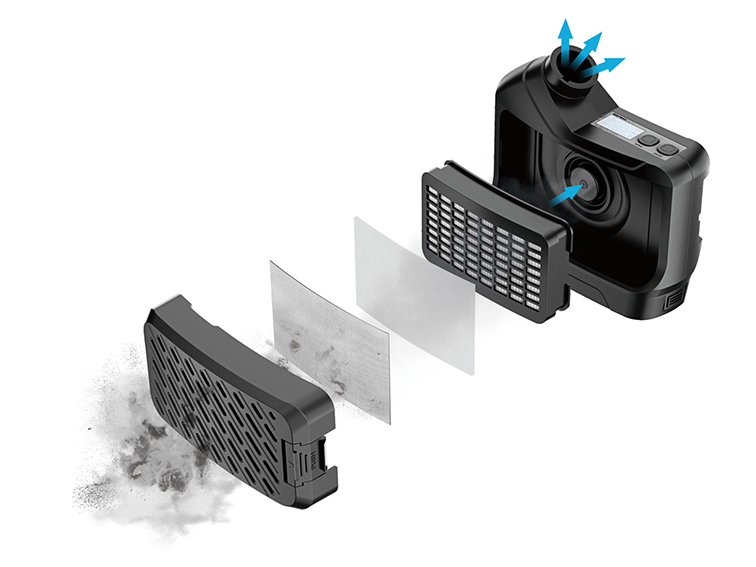

Filter Box and Battery:

-Conforms to EN12941 TH3P standard.

-Filtration efficiency＞99.97%

-Alarms:Visible, audible and viberation

-The spark catcher screen reduces the contact of sparks and other hot materials with the filter cotton.

-Battery:Rechargeable Li-ion Battery

- Voltage Capacity:11.1V/4Ah

Charging cycles>600

Battery Duration:170 L PM≥10 hours/200 L PM≥9hours/230 L PM≥7-8 hours/

-Charging time:3.0 hours

Turbor Unit:

-On:Tap to power-on, tap to select after power on high air flow or low air Flow.

-OFF: Press and hold for 2 seconds to turn off the machine.

-Low-speed air flow:170L/min

-Mid-speed air flow:200L/min

-High-speed air Flow:230L/min

Alarm:Low air flow alrm, Low batter alarm, filter catridge replacement alarm

Size:200*191*74MM (with filter box)
